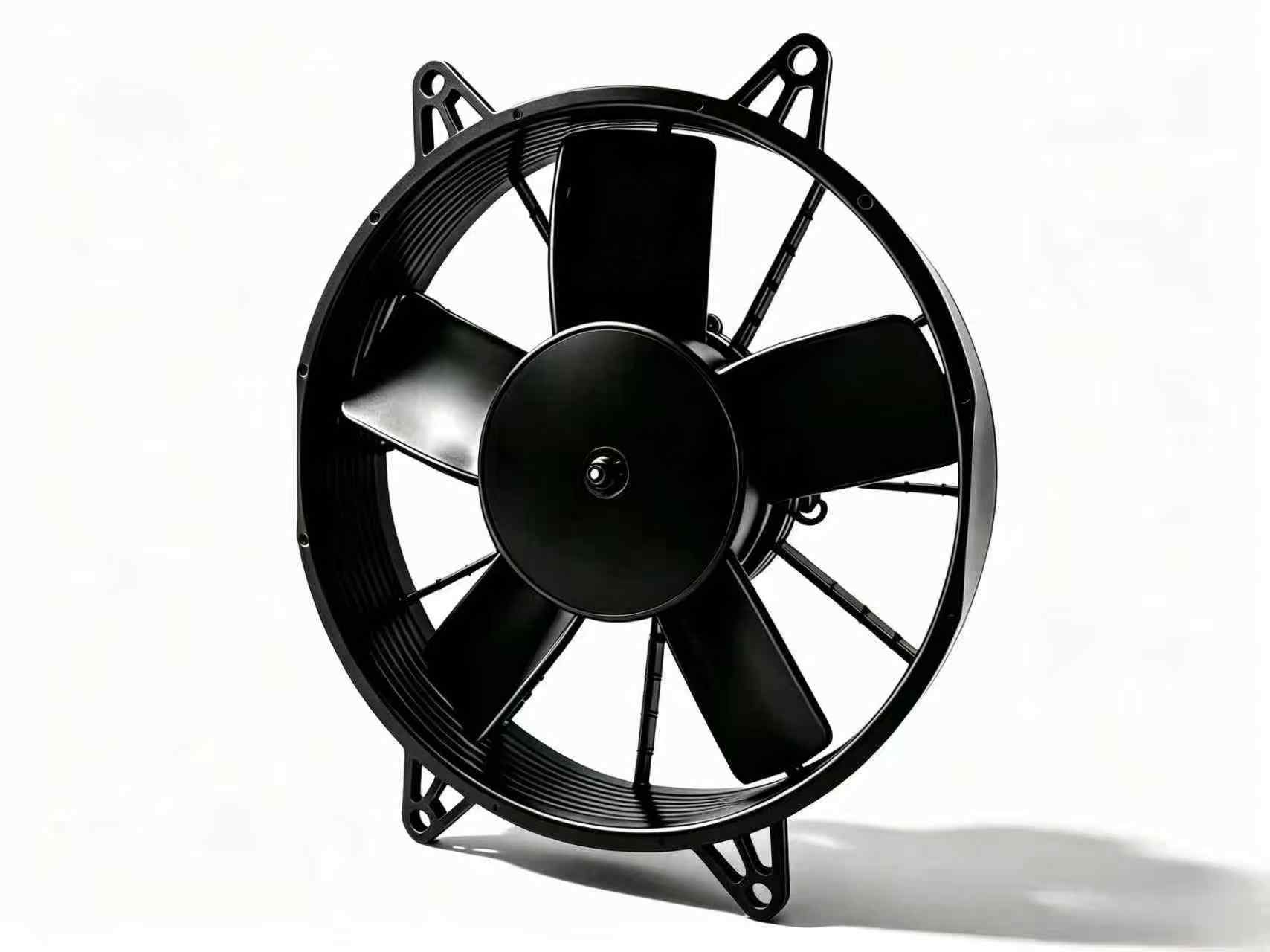

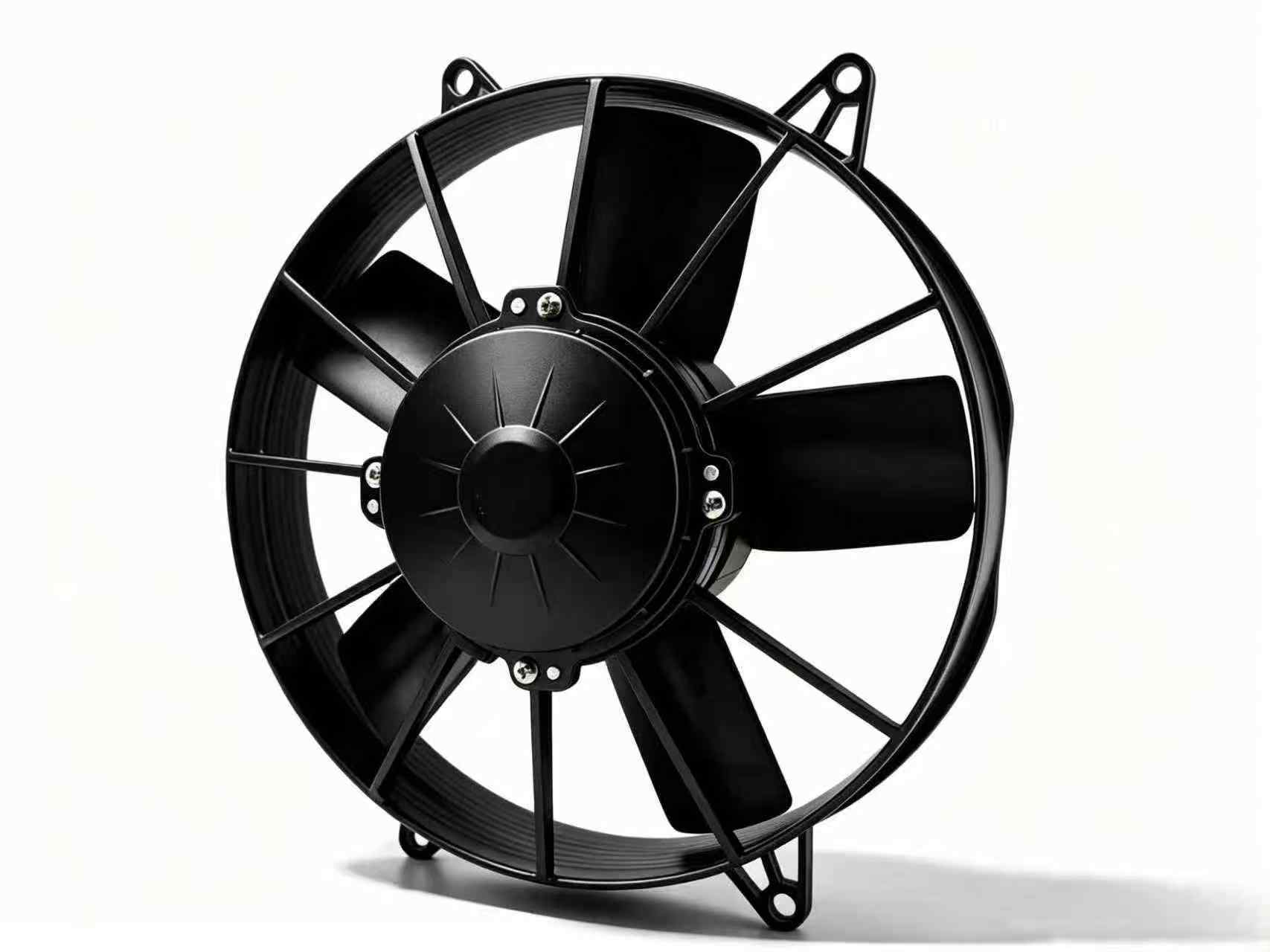

Brushed Axial Fan 24V, 255MM, Blowing
【 Model No. 】 AX24B004-B255-1SP-02T
【 Part No. 】 01.24.40B
【 Max.Airflow 】 1750 m3/ h
【 e-Catalog 】
Download e-Catalog
Product Specification
Tonada DC axial fan with brush：
Model: AX24B004-B255-1SP-02T
P/N: 01.24.40B
Max. Airflow 1750m³/h, Current Input 5.9A
Blowing, 1 Speed
Environmental Temperature: -40 ℃ ~ +85 ℃
Working Voltage: DC 24V
Weight: 2.2Kg
Features:
The fan is the axial flow type, it has the characteristics of compact structure, working reliability, high efficiency, long working life etc.
