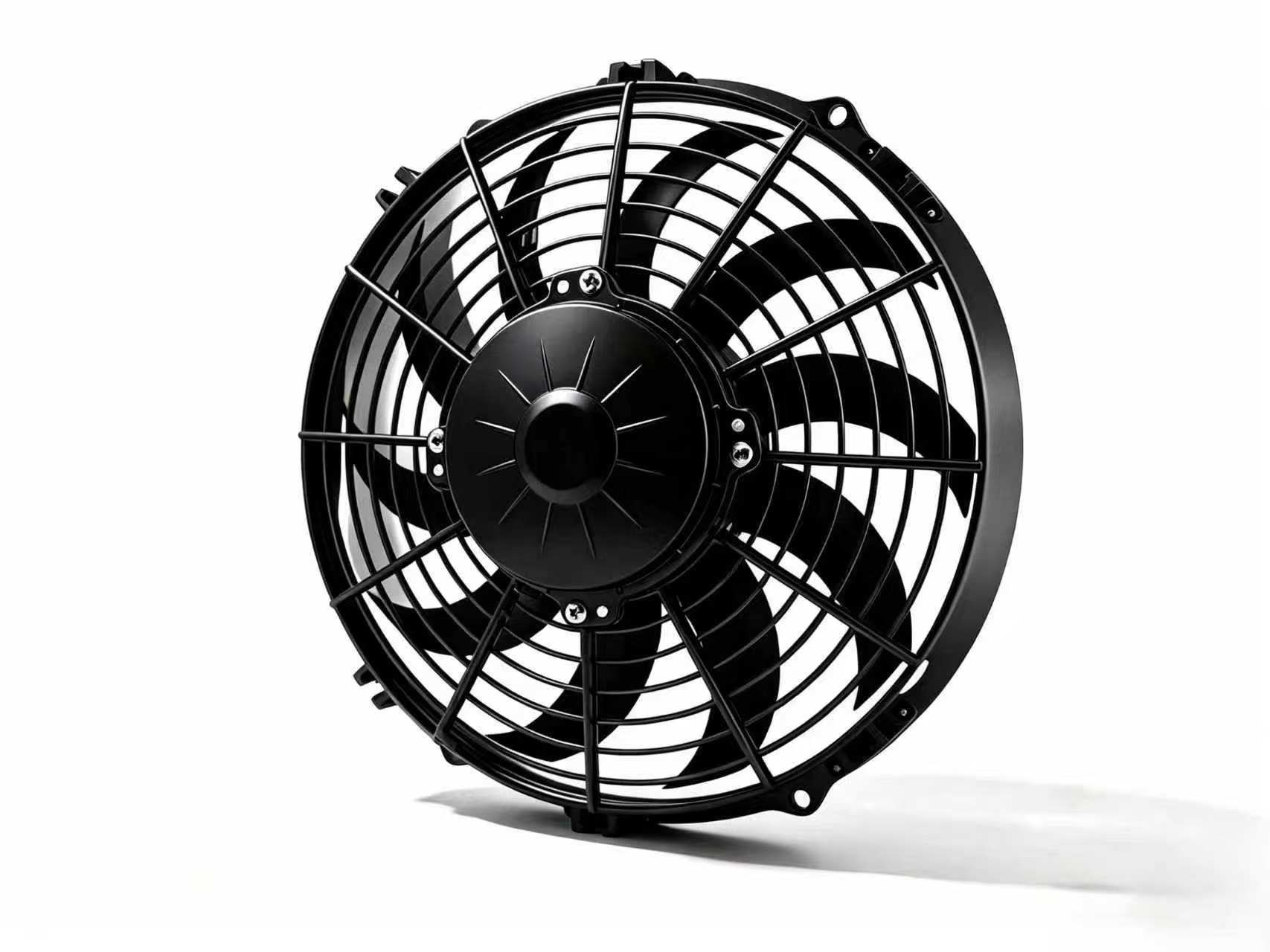

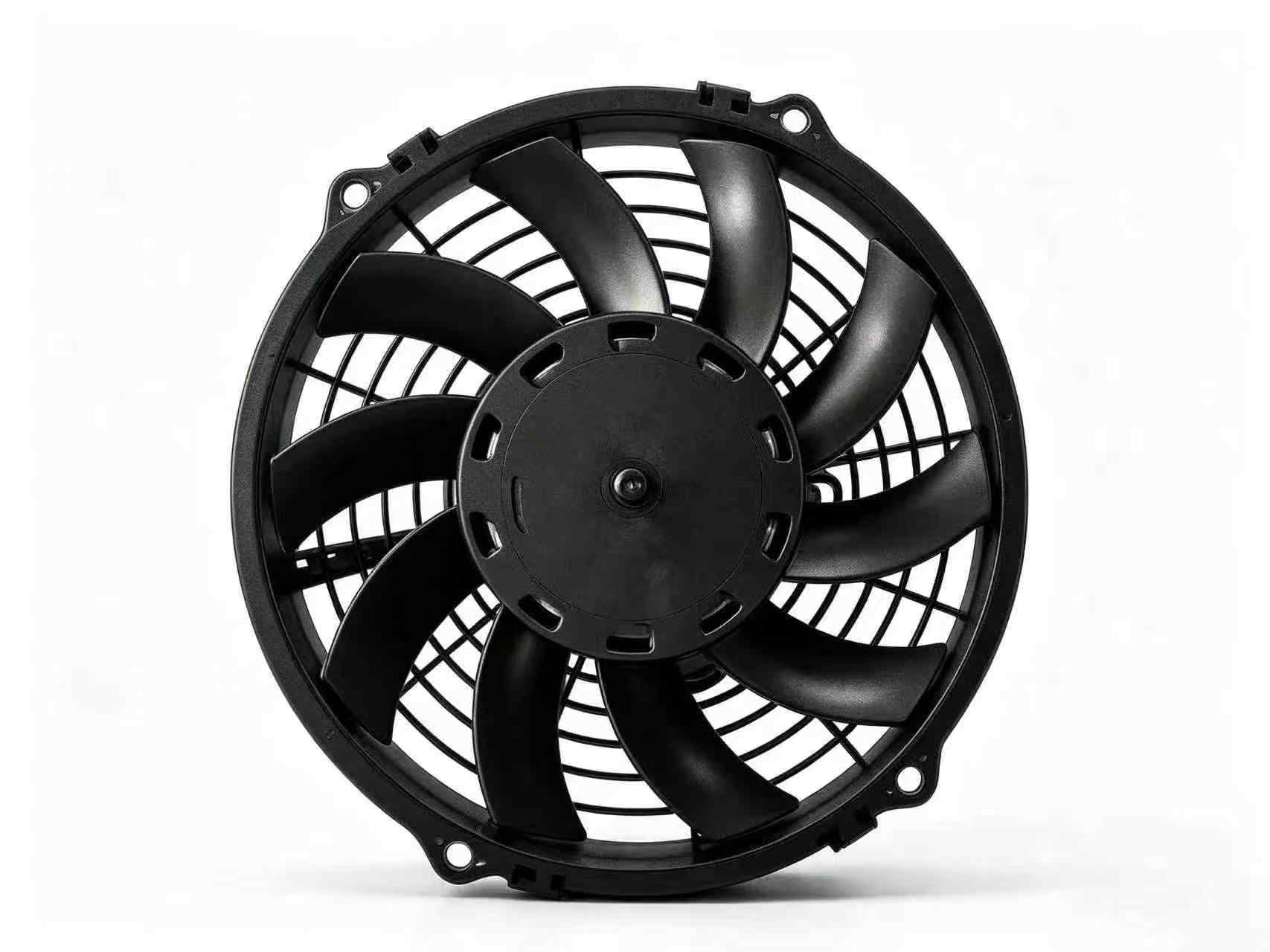

Brushed Axial Fan 24V, 225MM, Suction
【 Model No. 】 AX24B004-S225-1SP-02
【 Part No. 】 01.24.60B
【 Max.Airflow 】 1100 m3/ h
【 e-Catalog 】
Download e-Catalog
Product Specification
Tonada DC axial fan with brush：
Model: AX24B004-S225-1SP-02
P/N: 01.24.60B
Max. Airflow 1100m³/h, Current Input 3.3A
Suction, 1 Speed
Environmental Temperature: -40 ℃ ~ +85 ℃
Working Voltage: DC 24V
Weight: 1.3Kg
Features:
The fan is the axial flow type, it has the characteristics of compact structure, working reliability, high efficiency, long working life etc.
