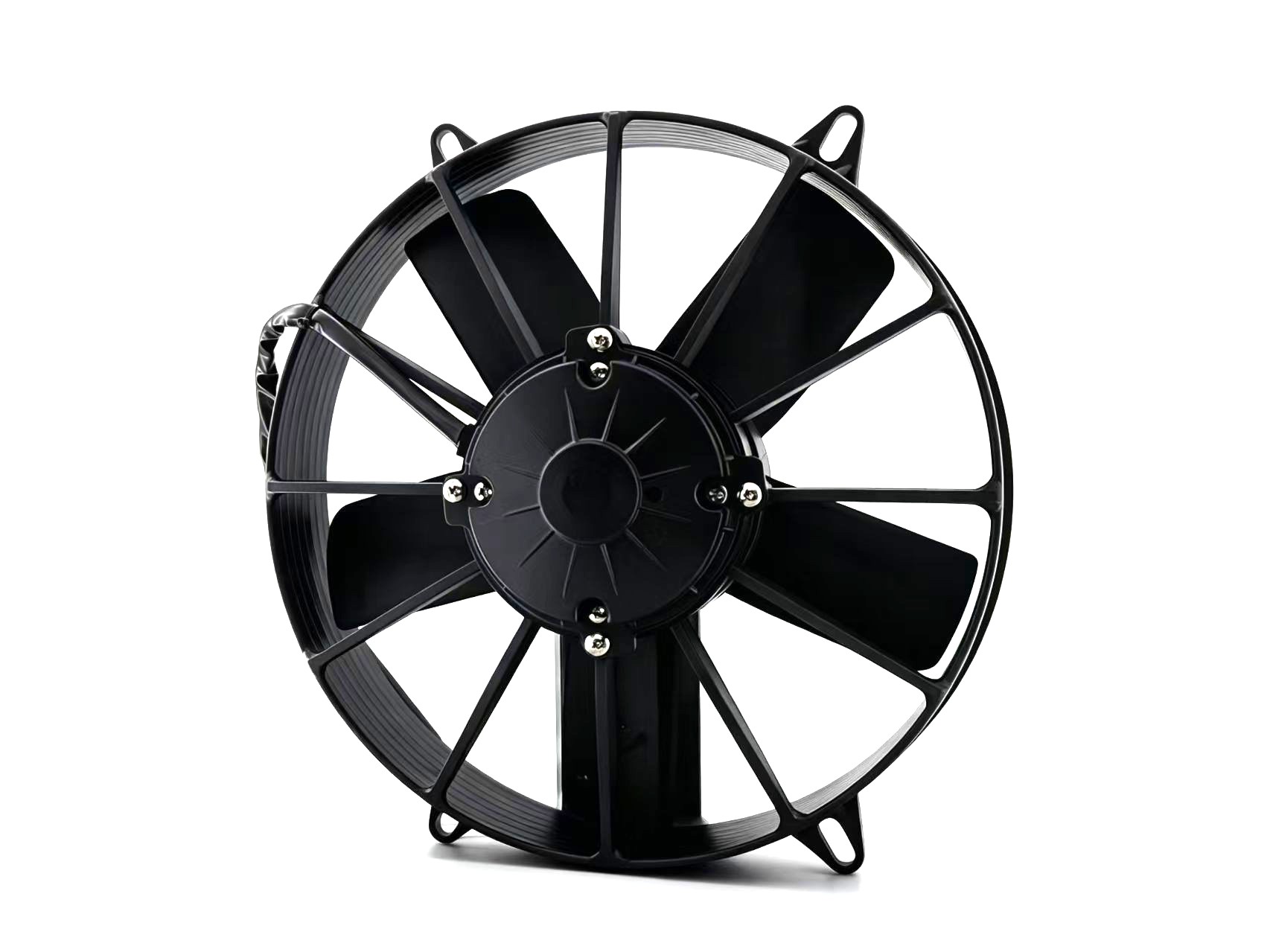

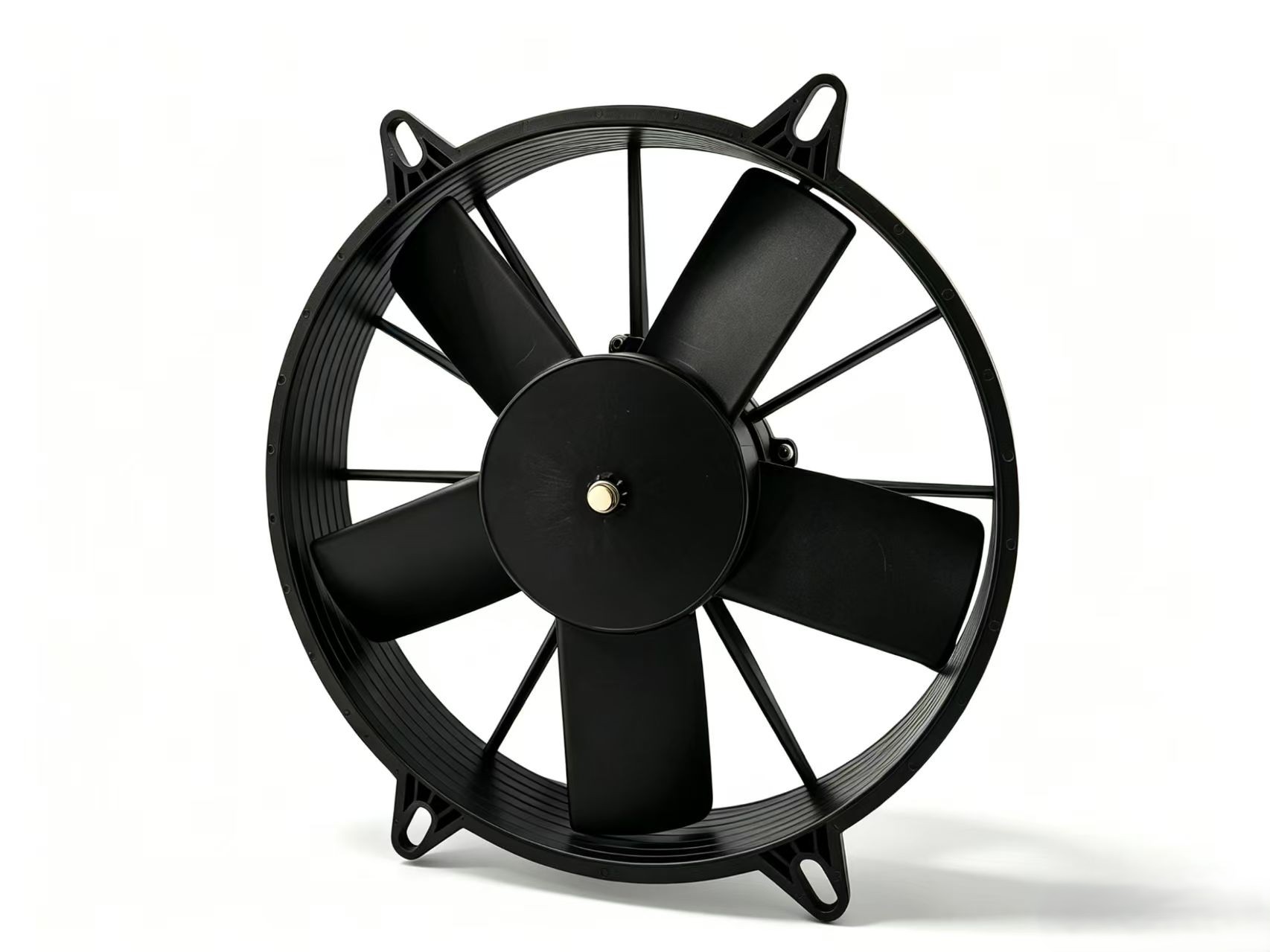

Brushed Axial Fan 12V, 280MM, Suction
【 Model No. 】 AX12B004-S280-1SP-02T
【 Part No. 】 01.12.36B
【 Max.Airflow 】 2400 m3/ h
【 e-Catalog 】
Download e-Catalog
Product Specification
Tonada DC axial fan with brush：
Model:AX12B004-S280-1SP-02T
P/N:01.12.36B
Max. Airflow 2400m³/h, Current Input 12.8A
Suction, 1 Speed
Environmental Temperature: -40 ℃ ~ +85 ℃
Working Voltage:DC12V
Weight: 2.35Kg
Features:
The fan is the axial flow type, it has the characteristics of compact structure, working reliability, high efficiency, long working life etc.
