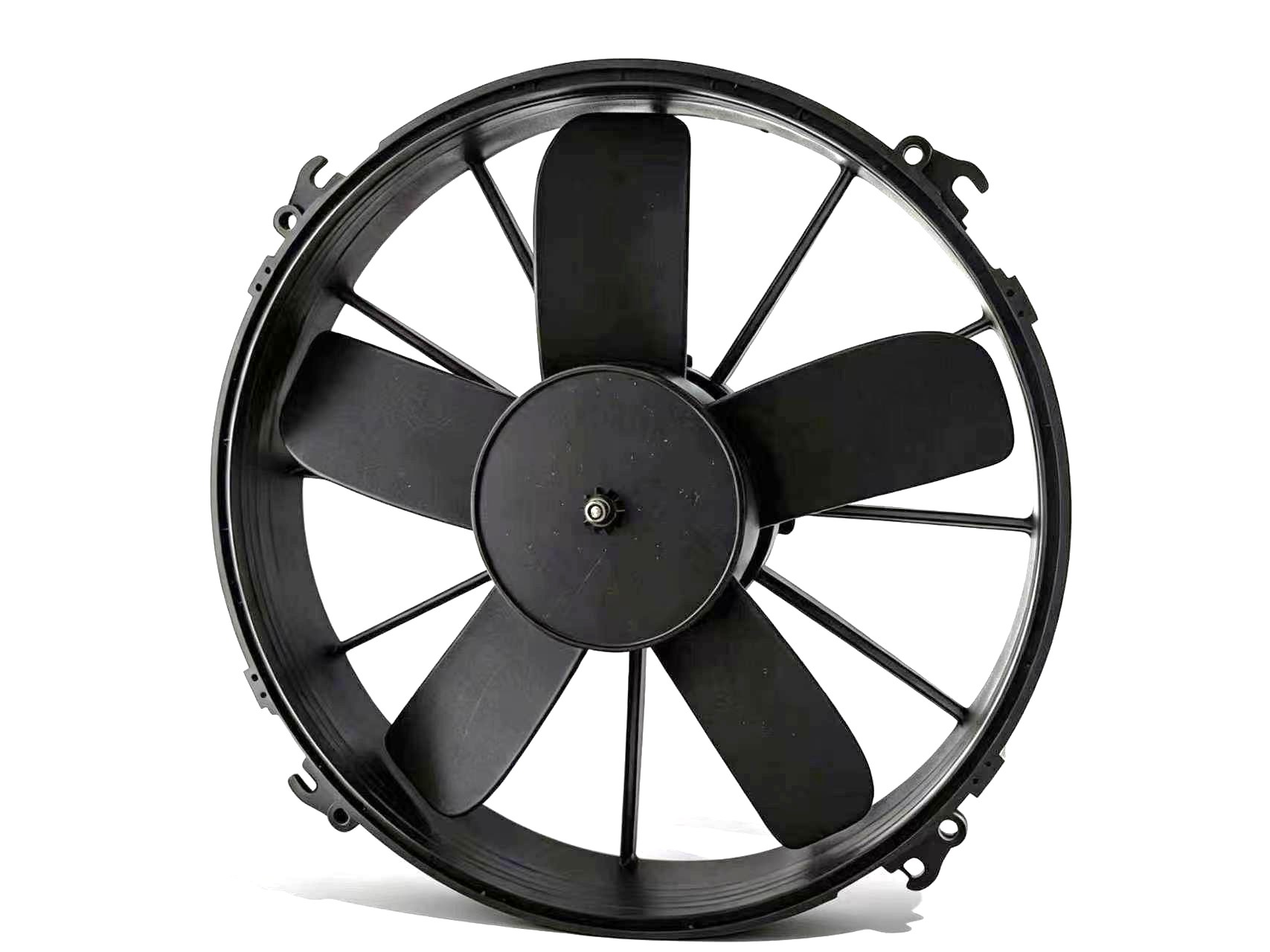

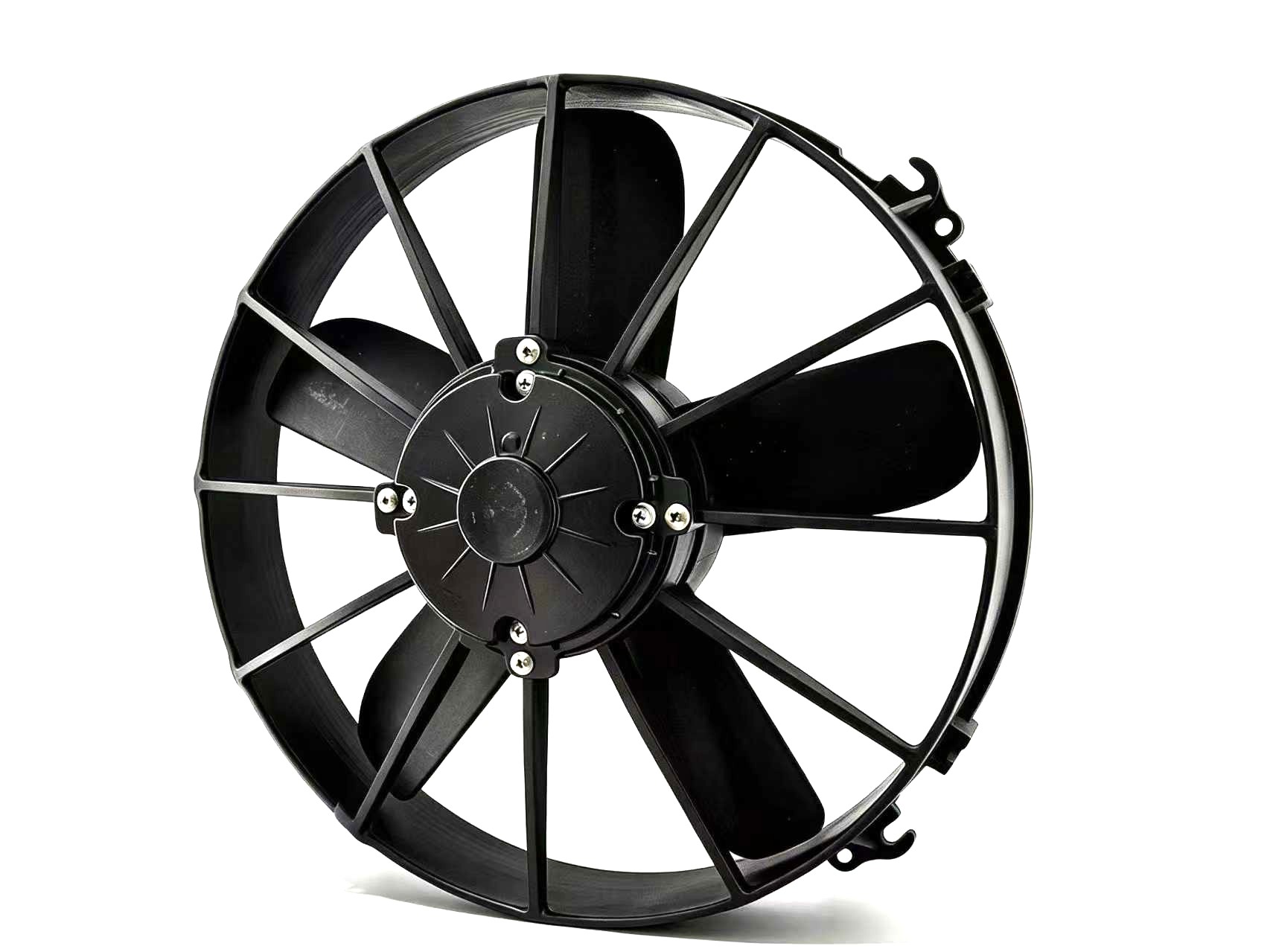

Brushed Axial Fan 12V, 305MM, Blowing
【 Model No. 】 AX12B004-B305-1SP-02T
【 Part No. 】 01.12.14B
【 Max.Airflow 】 2700 m3/ h
【 e-Catalog 】
Download e-Catalog
Product Specification
Tonada DC axial fan with brush：
Model: AX12B004-B305-1SP-02T
P/N: 01.12.14B
Max. Airflow 2700m³/h, Current Input 16.3A
Blowing, 1 Speed
Environmental Temperature: -40 ℃ ~ +85 ℃
Working Voltage: DC 12V
Weight: 2.5Kg
Features:
The fan is the axial flow type, it has the characteristics of compact structure, working reliability, high efficiency, long working life etc.
