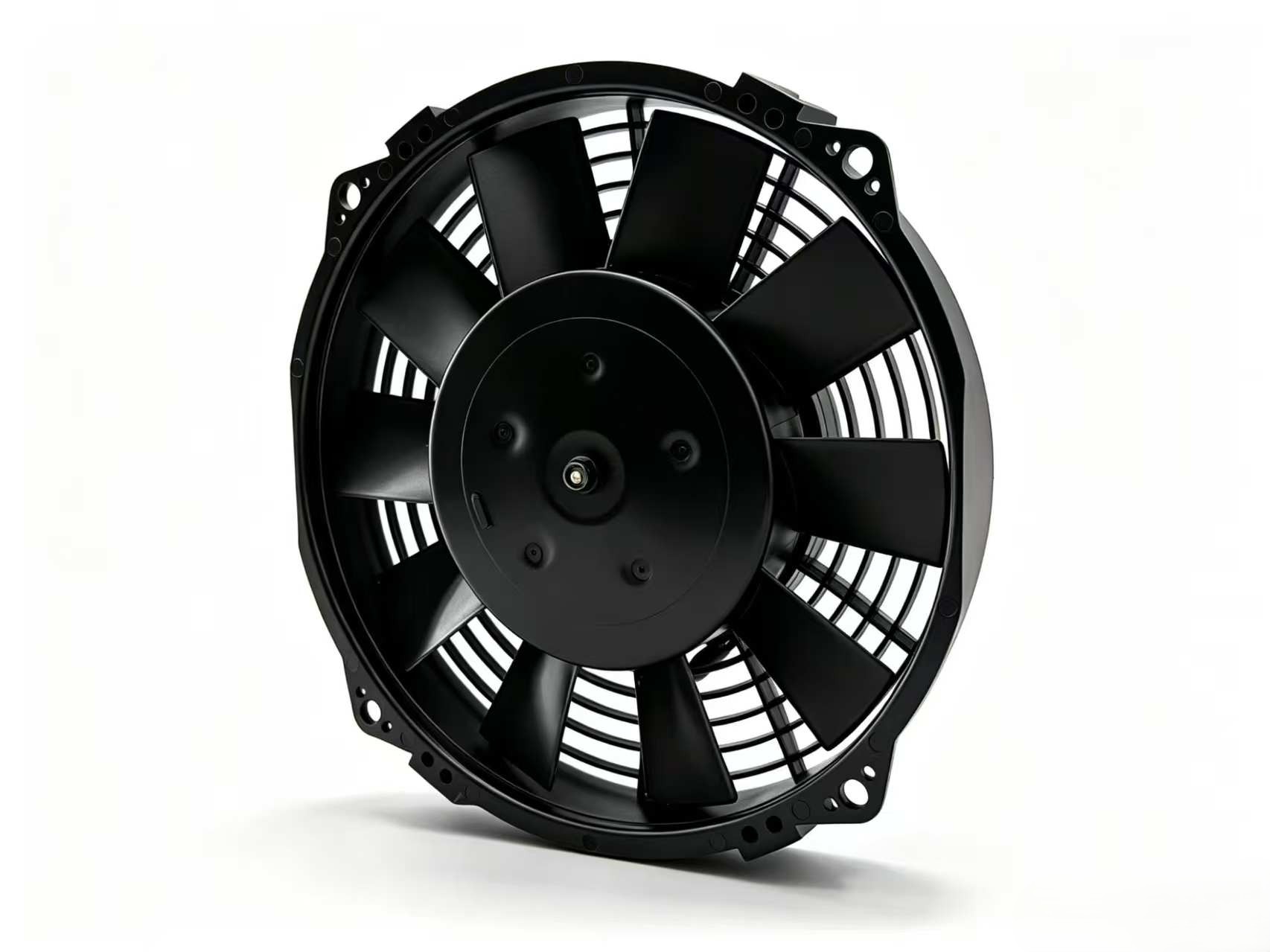

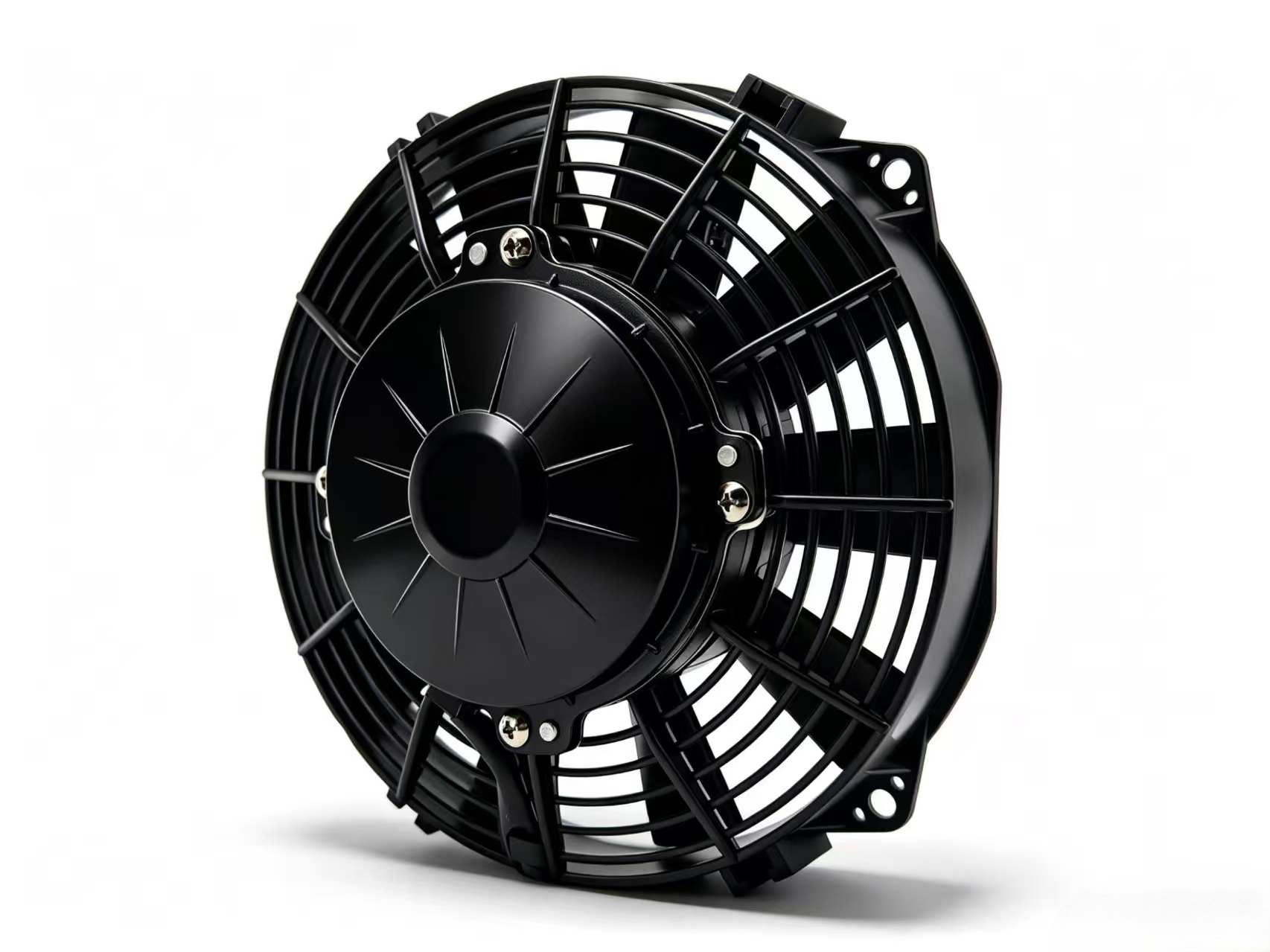

Brushed Axial Fan 12V, 190MM, Blowing
【 Model No. 】 AX12B004-B190-1SP-02L
【 Part No. 】 01.12.78B-VL
【 Max.Airflow 】 680 m3/ h
【 e-Catalog 】
Download e-Catalog
Product Specification
Tonada DC axial fan with brush：
Model:AX12B004-B190-1SP-02L
P/N:01.12.78B-VL
Max. Airflow 680m³/h, Current Input 6.7A
Blowing, 1 Speed
Environmental Temperature: -40 ℃ ~ +85 ℃
Working Voltage:DC12V
Weight: 1.0Kg
Features:
The fan is the axial flow type, it has the characteristics of compact structure, working reliability, high efficiency, long working life etc.
