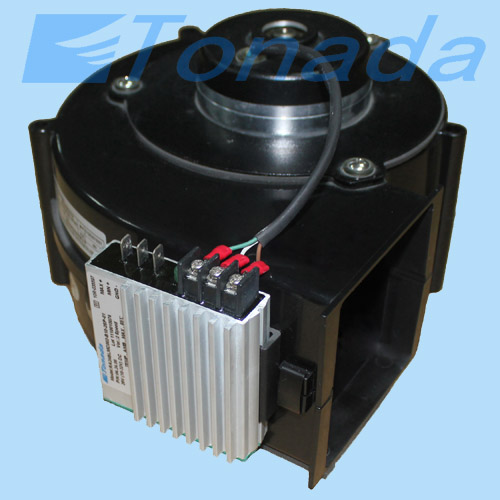

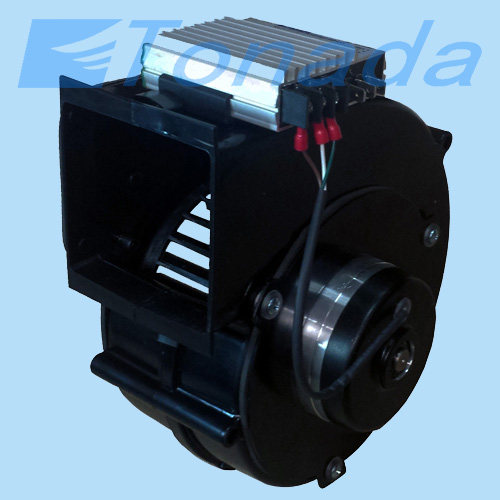

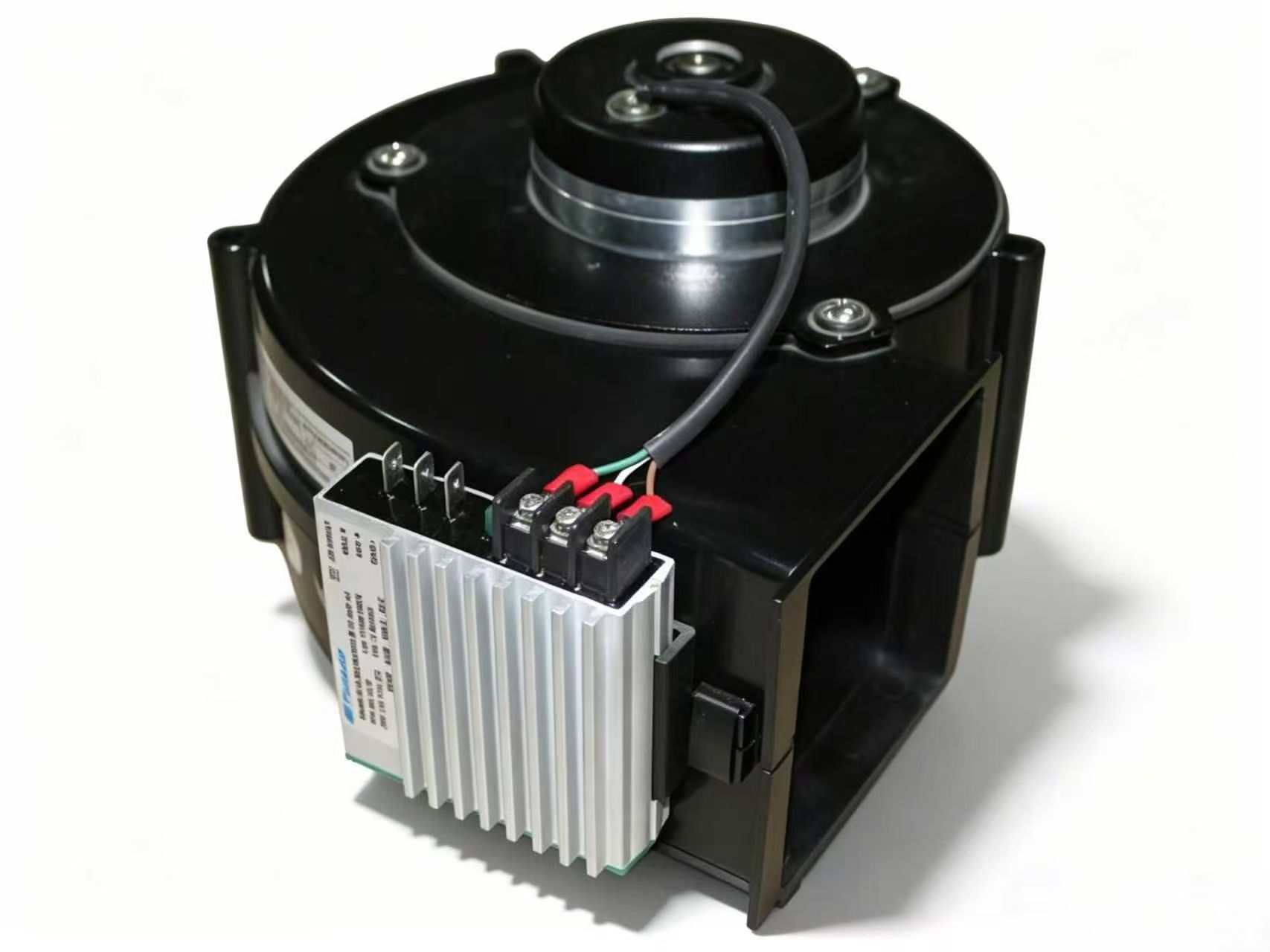

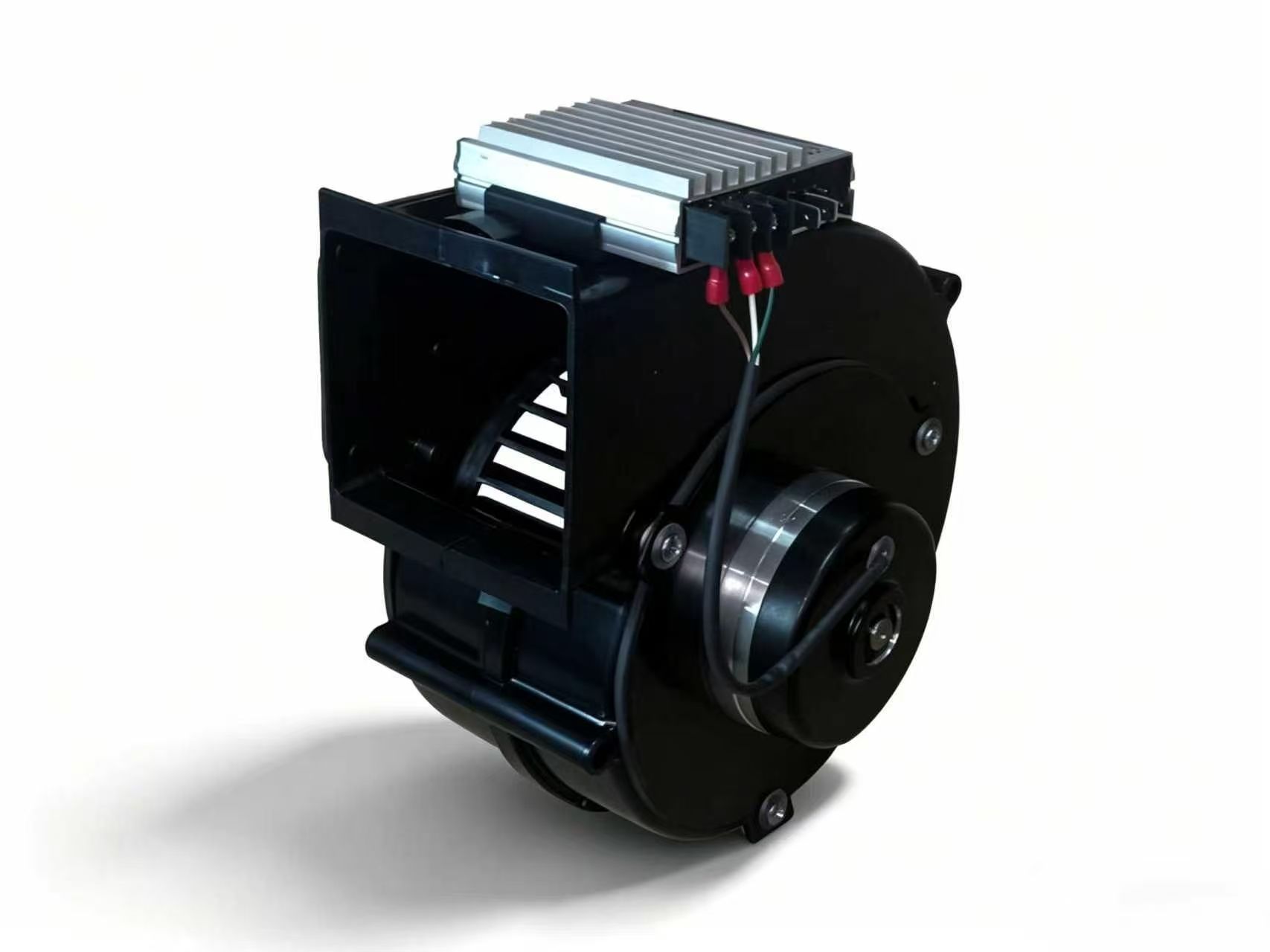

Centrifugal blower with brushless DC motor
【 Model No. 】 RA24BL003-B01-VSP-R01
【 Part No. 】 02.24.R18
【 Max.Airflow 】 660 m3/ h
【 e-Catalog 】
Download e-Catalog
Product Specification
DC24V, Max. Airflow 660 m³/h, Current Input 5.3A
Variable speeds
Tonada Modle: RA24BL003-B01-VSP-R01
P/N: 02.24.R18
Ref: HISP blower HISP5300065
HISP blower HISP5300084
Tonada brushless centrifugal fans feature remarkable performance, high efficiency, low energy consumption and super long life span. More importantly, they have high power output, sustained high torque and powerful motive force. As a result of these superior characteristics, they can drive huge volume of air exchange for the purpose of cold and hot air regulation in various equipment and systems. Models of higher speed and larger airflow volume than AC motor are also available.
Wide range of speed regulation and the intelligent adjustment by the open circuit and closed circuit which make the fans control the needed air volume accurately automatically. Tonada Brushless blowers are especially compatible for air flowing, ventilation, air conditioning, refrigeration and automobile industry etc. Brushless blowers with single-speed version, double-speed version or variable speeds version are available.
FEATURE:
No Carbon Brush; Low Power Consumption; Super Long Service Life; Maintenance-free; Environment-friendly; Short Circuit Protection; Over-Current Protection; Over-Temperature Protection; Over-Voltage Protection; Under-Voltage Protection; Locked-Rotor Protection.
