Brushed Axial Fan 24V, 305MM, Suction
【Model No.】：AX24B004-S305-1SP-02 【Part No.】：01.24.16B
【e-Catalog】

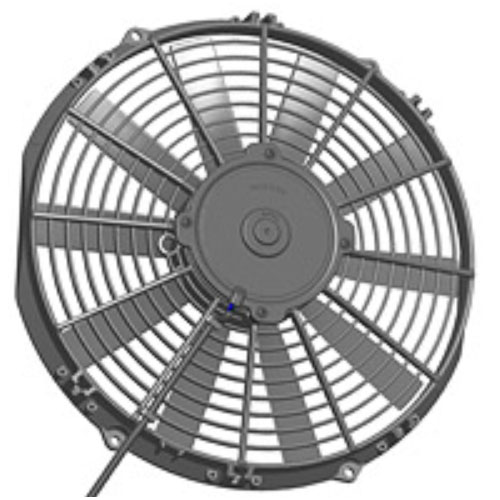

【e-Catalog】【Product Photos】： Click to zoom in
【Product Introduction】：
Tonada DC axial fan with brush：
Tonada Model: AX24B004-S305-1SP-02
P/N: 01.24.16B
Max. Airflow 1560 m3/h, Current Input 3.5A
Suction, 1 Speed
Environmental Temperature: -40 ℃ ~ +85 ℃
Working Voltage: 24VDC
Quality: 2.5Kg
Noise: 75db(A)
Features:
The fan is the axial flow type, it has the characteristics of compact structure, working reliability, high efficiency, long working life etc.
