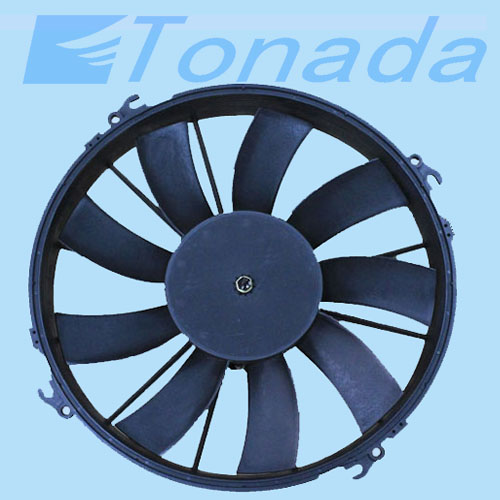

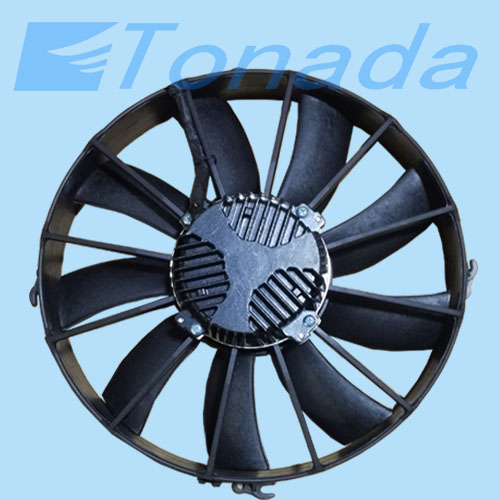

Konvekta H11-002-208 & H11-002-275 Replacements, Tonada EC Fan 24V, 305MM
DC 24V, Max.Airflow 2830 m3/h, Current Input 8.5A;
Blowing, variable speeds
Tonada Modle: AX24BL009C-B305-VSP-02
Ref: Konvekta H11-002-208 & H11-002-275, EBM W3G300-RQ12-11
Tonada EC axial fans allow higher speed and tolerate backpressure better than AC motor and it can carry out intellectual regulation during operation through the pulse-width modulated signal open-loop control. DC motor is especially suitable for air flowing, ventilation, air conditioning, refrigeration and automobile industry etc.
We adopted the advanced aerodynamics philosophy for fans, which are highly efficient and generate less noise. Fans with curved or straight blades are available; DC brushless condenser fans with single-speed version, double-speed version or variable-speed version, and the intelligent electronic controllers with internal (integrated with motor) or external version are available.
No Carbon Brush; Low Power Consumption; Super Long Service Life; Maintenance-free; Environment-friendly; Short Circuit Protection; Over-current Protection; Over-temperature Protection; Over-voltage Protection; Under-voltage Protection; Locked-rotor protection.
